WndDataMenu.h File Reference

#include <pebble.h>
#include "libs/magpebapp.h"

Include dependency graph for WndDataMenu.h:

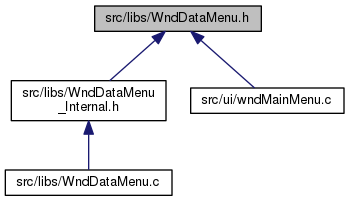

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	WndDataMenu_Palette

Typedefs
typedef struct WndDataMenu_Palette	WndDataMenu_Palette
typedef struct WndDataMenu	WndDataMenu

Functions
MagPebApp_ErrCode	WndDataMenu_updateView (WndDataMenu *this)
MagPebApp_ErrCode	WndDataMenu_setNumSections (WndDataMenu *this, const uint16_t)
MagPebApp_ErrCode	WndDataMenu_setSectionTitle (WndDataMenu *this, const uint16_t, const char *)
MagPebApp_ErrCode	WndDataMenu_buildSection (WndDataMenu *this, const uint16_t, const uint16_t, const char *)
MagPebApp_ErrCode	WndDataMenu_buildRow (WndDataMenu *this, const uint16_t, const uint16_t, const char *, const char *)
MagPebApp_ErrCode	WndDataMenu_setPalette (WndDataMenu *this, const WndDataMenu_Palette)
MagPebApp_ErrCode	WndDataMenu_push (WndDataMenu *this)
WndDataMenu *	WndDataMenu_create ()
	Creates a data menu window and pushes it on the window stack. More...
MagPebApp_ErrCode	WndDataMenu_destroy (WndDataMenu *this)

Typedef Documentation

typedef struct WndDataMenu WndDataMenu

typedef struct WndDataMenu_Palette WndDataMenu_Palette

Function Documentation

MagPebApp_ErrCode WndDataMenu_buildRow	(	WndDataMenu *	this,
		const uint16_t	sectIdx,
		const uint16_t	rowIdx,
		const char *	rowTitle,
		const char *	rowSubtitle
	)

Sets up a row in a section of this data menu.

A call to this function must be preceded by a call to buildSection to allocate the number of rows in this data menu section (default is 1).

Parameters

[in,out]	this	Pointer to the WndDataMenu "object"; must be already allocated.
[in]	sectIdx	The index of the section that this function will build.
[in]	rowIdx	The index of the row that this function will build.
[in]	rowTitle	The title for this row. May be NULL.
[in]	rowSubtitle	The subtitle for this section. May be NULL.

Returns

MPA_SUCCESS on success MPA_INVALID_INPUT_ERR if sectIdx is not a valid section index or rowIdx is not a valid row index in that section. MPA_NULL_POINTER_ERR if parameters this or this->sections are NULL upon entry.

MagPebApp_ErrCode WndDataMenu_buildSection	(	WndDataMenu *	this,
		const uint16_t	sectIdx,
		const uint16_t	numRows,
		const char *	headerTitle
	)

Sets up a section of this data menu.

A call to this function may be preceded by a call to setNumSections to indicate the number of sections in this data menu (default is 1). A call to this function should be followed by a call buildRow to setup the rows within this section.

Parameters

[in,out]	this	Pointer to the WndDataMenu "object"; must be already allocated.
[in]	sectIdx	The index of the section that this function will build.
[in]	numRows	Indicates the number of rows this section will contain.
[in]	headerTitle	The title for this section. May be NULL.

Returns

MPA_SUCCESS on success MPA_INVALID_INPUT_ERR if sectIdx is not a valid section index MPA_NULL_POINTER_ERR if parameters this or this->sections are NULL upon entry.

WndDataMenu* WndDataMenu_create

(

)

Creates a data menu window and pushes it on the window stack.

MagPebApp_ErrCode WndDataMenu_destroy

(

WndDataMenu *

this

)

MagPebApp_ErrCode WndDataMenu_push

(

WndDataMenu *

this

)

MagPebApp_ErrCode WndDataMenu_setNumSections	(	WndDataMenu *	this,
		const uint16_t	numSections
	)

Sets the number of sections for this data menu.

Parameters

[in,out]	this	Pointer to the WndDataMenu "object"; must be already allocated.
[in]	num	Number of sections

MagPebApp_ErrCode WndDataMenu_setPalette	(	WndDataMenu *	this,
		const WndDataMenu_Palette
	)

MagPebApp_ErrCode WndDataMenu_setSectionTitle	(	WndDataMenu *	this,
		const uint16_t	sectIdx,
		const char *	headerTitle
	)

Sets the title for a section of this data menu.

Parameters

[in,out]	this	Pointer to the WndDataMenu "object"; must be already allocated.
[in]	sectIdx	The index of the section that this function will build.
[in]	headerTitle	The title for this section. May be NULL.

Returns

MPA_SUCCESS on success MPA_INVALID_INPUT_ERR if sectIdx is not a valid section index MPA_NULL_POINTER_ERR if parameters this or this->sections are NULL upon entry.

MagPebApp_ErrCode WndDataMenu_updateView

(

WndDataMenu *

this

)
